Spruce Filters

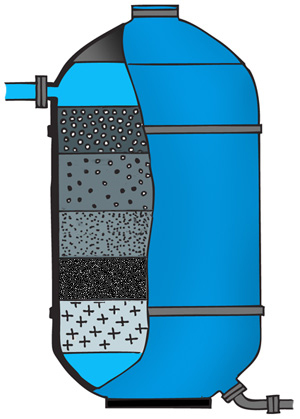

The Spruce Filter is a media filter used for the removal of suspended solids in waste water. The filter consists of several layers of inert natural material. Suspended waste becomes trapped and treated by the layers as liquid passes through the filter. This process allows the Spruce filter to be used in tertiary polishing and associated BOD removal, both of which result in purer water.

Here are some advantages of using a Spruce filter:

Smaller footprint than comparable sand filters
Lower backwash frequency and backwash volume required — this allows water to be used more efficiently when the filter is automatically cleaned
Removes over 80% of suspended solids in waste water
Pressurised system allows for higher flow rates than comparable sized sand filters
Automatic operation and backwashing
Air scouring available as an option — this can increase the efficiency of the backwash cycle and improve filter performance
Caustic backwashing available as an option
The filter can also be used on clean water applications, desalination plants and process water used in industrial applications

Spruce Filter applications


Waste water	Potable/Clean water
Secondary: Inlet loadings of up to 500mg/ltr for suspended solids and BOD reduction/removal. Tertiary Polishing for suspended solids and BOD reduction/removal. Pre-Filtration for UV to meet bathing water directive consent. Replacement or retrofit of sand filters to meet consent limits. Reduction of Suspended Solids by over 85%, Reduction of BOD by over 65%, Reduction of COD by over 55% Increased UV kill	Inlet Water: algae removal, Turbidity reduction, Pre-treatment: For Reverse Osmosis, UV for solids removal and optimization RGF: Increase in throughput and/or performance Iron and Manganese reduction Prolong life of cartridge filters Turbidity removal 80-98% SDI removals down to Membrane cleaning frequency quartered Increase throughput, up to 5 times of an existing RGF Up to 75% and 98% removal of Fe and Mn with no other treatments

Process water	Desalination
Waste Water Reduce effluent charges by reducing COD and suspended solids (Food, metals etc), clean up waste water for re-use Cooling Towers Reduce Legionella risk and improve efficiency by reducing solids. Process Water Reduce solids and reduce downtime (Blocked nozzles etc),improve heat transfer. Prolong life of cartridge filters Enable use of natural water sources not previously used for process (Bore holes, lakes, rivers etc)	Pre-Treatment as a lower cost, higher performance alternative to sand or dual media. Turbidity/suspended solids reduction to give SDI Reduce footprint by up to 75% by ability to run at velocities up to 60m/hr. Chemical free, coagulants not required in standard installations Reduce frequency of membrane chemical cleanings by up to 4 times Prolong life of any cartridge filters that may be being used as a final barrier
