ATAC Lamella

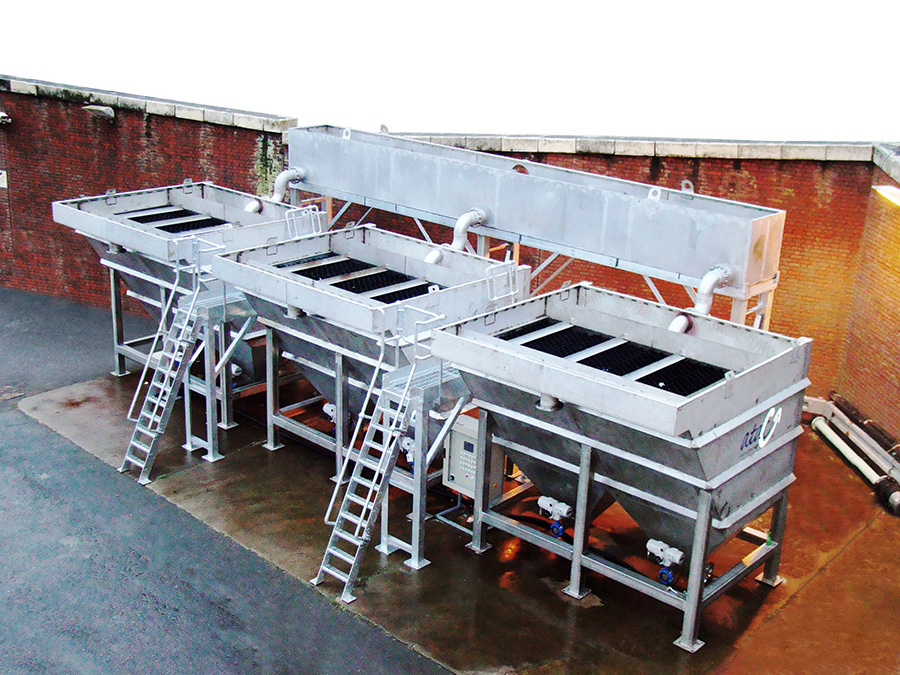

Lamella Settlement Tanks

ATAC Lamella is an effective solution for settlement of suspended solids ensuring optimal performence of your treatment plant.


ATAC Solutions ATSL range of water settlement tanks range from 20m2 to 100m2 (effective area) and are designed and manufactured with longevity and modular ergonomics in mind.

ATAC Lamella;

The ATAC Solutions Lamella is manufactured form stainless steel so we have an expected life span of 25 years plus. The ATAC Lamellas are modular and transportable and are available for hire or capital purchase with fast manufacture time.

The ATAC Lamella compliments the ATAC fleet of process equipment and ATAC are happy to offer a turnkey product to suit your treatment needs.


Typical Installations and processes

  • Final Settlement for Sewage Treatment plants
  • Ground Water for construction or industrial excavations
  • Open Trench Settlement


DATA SHEET – ATL36 Lamella Unit

Lamella

Tank Connections

INLET – 1 No. 6” Stainless Steel Flange, drilled to BS4504 PN16 OUTLET – 1 No. 6” Stainless Steel Flange, drilled to BS4504 PN16 DRAIN/SLUDGE DRAW OFF – 1 No. 4” Stainless Steel Flange, Drilled to BS4504 PN16, fitted with suitable isolation valve and male bauer type fitting (or common manifold where specified)

Walkway - Cantilevered: Galvanised Mild Steel cantilevered walkway, complete with ship type ladder and mesh infill panels

DRY Weight: Various

OPERATIONAL Weight: Site Dependent

Height: Site Dependent

Length: Site Dependent

Width: Site Dependent

Lamella Media Volume: 36m2 to 300m2

Desludge Valve: 1 No. 4” Butterfly Valve

Auto Desludge Actuator: 1 No. Rotork IQT125 Actuator with Battery Backup, CPT board for position control



Call 01622 8822400 for a complimentary site visit or technical information
